Medical Fittings

At GlobalMed we manufacture extruded plastic corrugated and expandable tubing for Anesthesia, Respiratory and other custom medical applications.
We also injection mould a full line of plastic medical fittings to compliment our tubing products.

GlobalMed customers have the convenience of being able to choose from a full line of injection moulded medical fittings to complement their medical tubing assemblies.

Anesthesia & Respiratory Medical Fittings

Below are some of our most common medical fittings.

If you have a custom medical fitting requirement, or would like to receive additional information on GlobalMed’s existing fittings, please feel free to submit an rfq-sample request form or contact a member of our Sales Department.

150g Bacteria Viral Filter

Part Number: 55004150 *500
ID / OD (mm): 22mm OD x 15mm ID  x 22mm ID (Bulk Pkg’d 500/Cs)
STD MATL: PP

90° Standard Elbow

Part Number: I284
ID / OD (mm): 22mm OD x 15mm ID  x 15mm OD
STD MATL: PP

Adaptor

Part Number: I1510
ID / OD (mm): 15mm OD x 10mm OD
STD MATL: PP

Adult Hose Cuff

Part Number: I107
ID / OD (mm): 22mm ID
STD MATL: EVA / LDPE

Adult Parallel Wye

Part Number: I106
ID / OD (mm): 22mm OD x 22mm OD x 15mm ID
STD MATL: PP

Adult Parallel Wye with Gas Sampling Port

Part Number: I100-1P
ID / OD (mm): 22mm OD x 22mm OD  x 15mm ID
STD MATL: PP

Adult Parallel Wye with Temp. & Gas Ports

Part Number: I100-2TG
ID / OD (mm): 22mm OD x 22mm OD  x 15mm ID
STD MATL: PP

Adult Parallel Wye with Temp. & Pressure Port

Part Number: I100-2P
ID / OD (mm): 22mm OD x 22mm OD  x 15mm ID
STD MATL: PP

Barbed Adaptor

Part Number: I122
ID / OD (mm): 22mm OD x 15mm ID
STD MATL: EVA

Barbed Bag Bushing – PVC Flange

Part Number: I150
ID / OD (mm): 22mm OD
STD MATL: PVC

Barbed Connector

Part Number: I115
ID . OD (mm): 15mm OD
STD MATL: EVA

Blue Bleed Valve Assembly

Product Number: IS146
ID / OD (mm): 19mm OD
STD MATL: PP

Blue Hooded Gas Sampling Cap

Part Number: I287C
ID / OD (mm): Luer Port Cap
STD MATL: LDPE

Circuit Clip

Part Number: I145
ID / OD (mm): 22mm
STD MATL: PP

Clear Connector

Part Number: I114NB
ID / OD (mm): 15mm OD x 15mm  OD
STD MATL: KR

Clear Connector

Part Number: I121NB
ID / OD (mm): 22mm OD x 15mm OD  x 15mm ID
STD MATL: KR

Connector

Part Number: I2206
ID / OD (mm): 22mm OD x 6mm OD
STD MATL: PP

Connector

Part Number: I61022
ID / OD (mm): 10mm OD x 22mm OD
STD MATL: PP

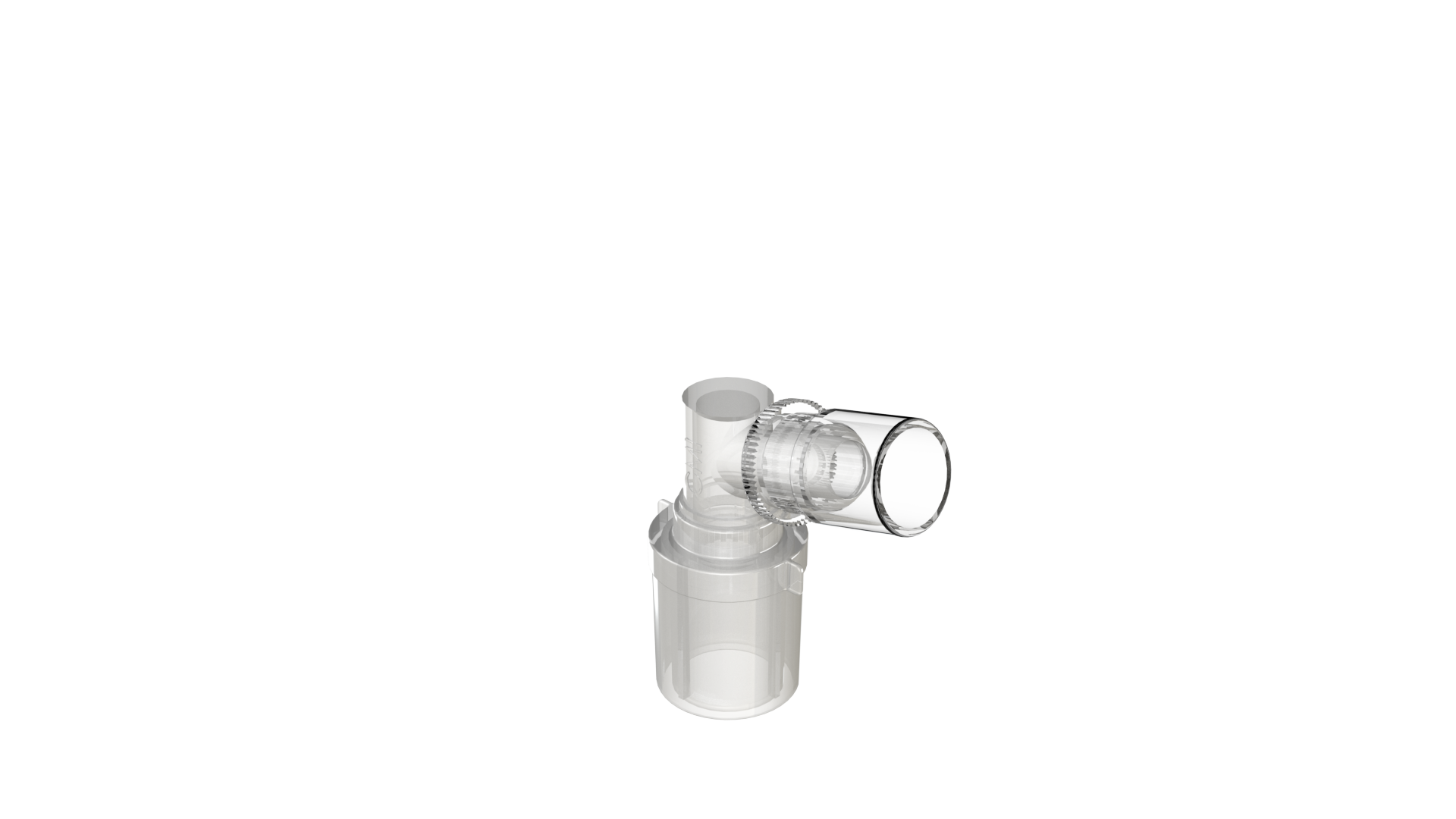

Double Swivel Elbow

Part Number: I144
ID / OD (mm): 15mm OD x 15mm ID  x 22mm OD
STD MATL: PP/KR

Double Swivel Elbow with Port & Cap

Part Number: I143
ID / OD (mm): 15mm OD x 15mm  ID  x 22mm OD
STD MATL: PP/KR

E.T. Connector

Part Number: I140
ID / OD (mm): 22mm OD x 15mm ID
STD MATL: KR

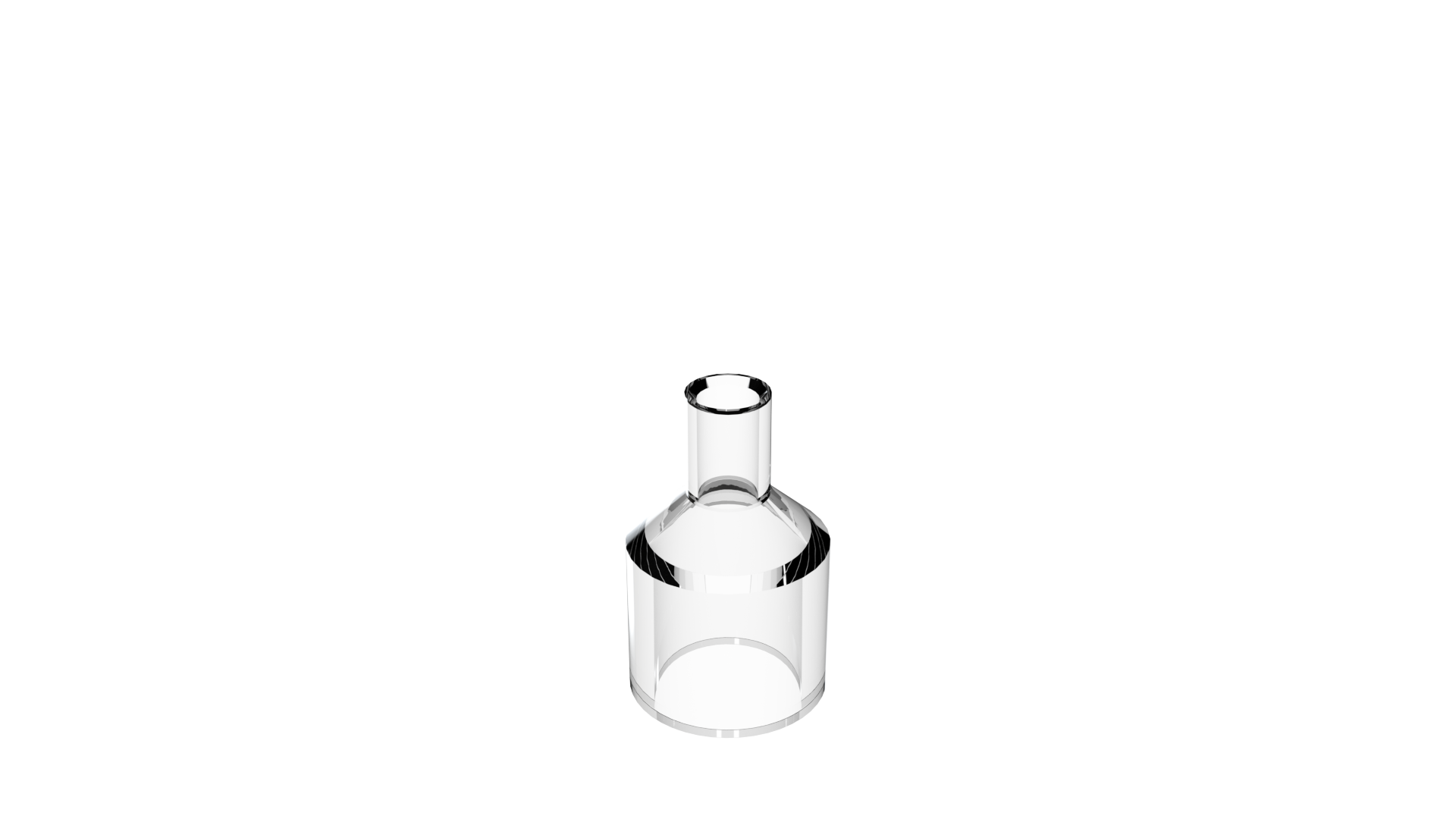

Fresh Gas Connector (Swedish Bell)

Part Number: I137
ID / OD (mm): 22mm ID x 6mm Gas Line
STD MATL: KR

Gas Sampling Elbow with Port

Part Number: I286GS Elbow
ID / OD (mm): 22mm OD x 15mm ID  x 15mm OD
STD MATL: PP

Neonatal Cuff Adaptor

Part Number: I2210
ID / OD (mm): 22mm ID x 10mm OD
STD MATL: PP

Quick Connect

Part Number: I138
ID / OD (mm): 6mm Gas Line  Adaptor
STD MATL: ABS

Scavenger Elbow

Part Number: I139
ID / OD (mm): 22mm ID
STD MATL: KR

Straight Adaptor

Part Number: I2222
ID / OD (mm): 22mm ID x 22mm ID
STD MATL: LDPE

Straight Connector

Part Number: I2215
ID / OD (mm): 22mm OD x 15mm ID  x 22mm OD
STD MATL: PP

Straight Connector

Part Number: I2219
ID / OD (mm): 22mm OD x 22mm OD  x 19mm ID
STD MATL: PP

Straight Connector, Clear

Part Number: I105N
ID / OD (mm): 22mm ID x 15mm OD
STD MATL: KR

Unless noted otherwise the standard colour for our medical fittings is natural or clear.
